Sample loading

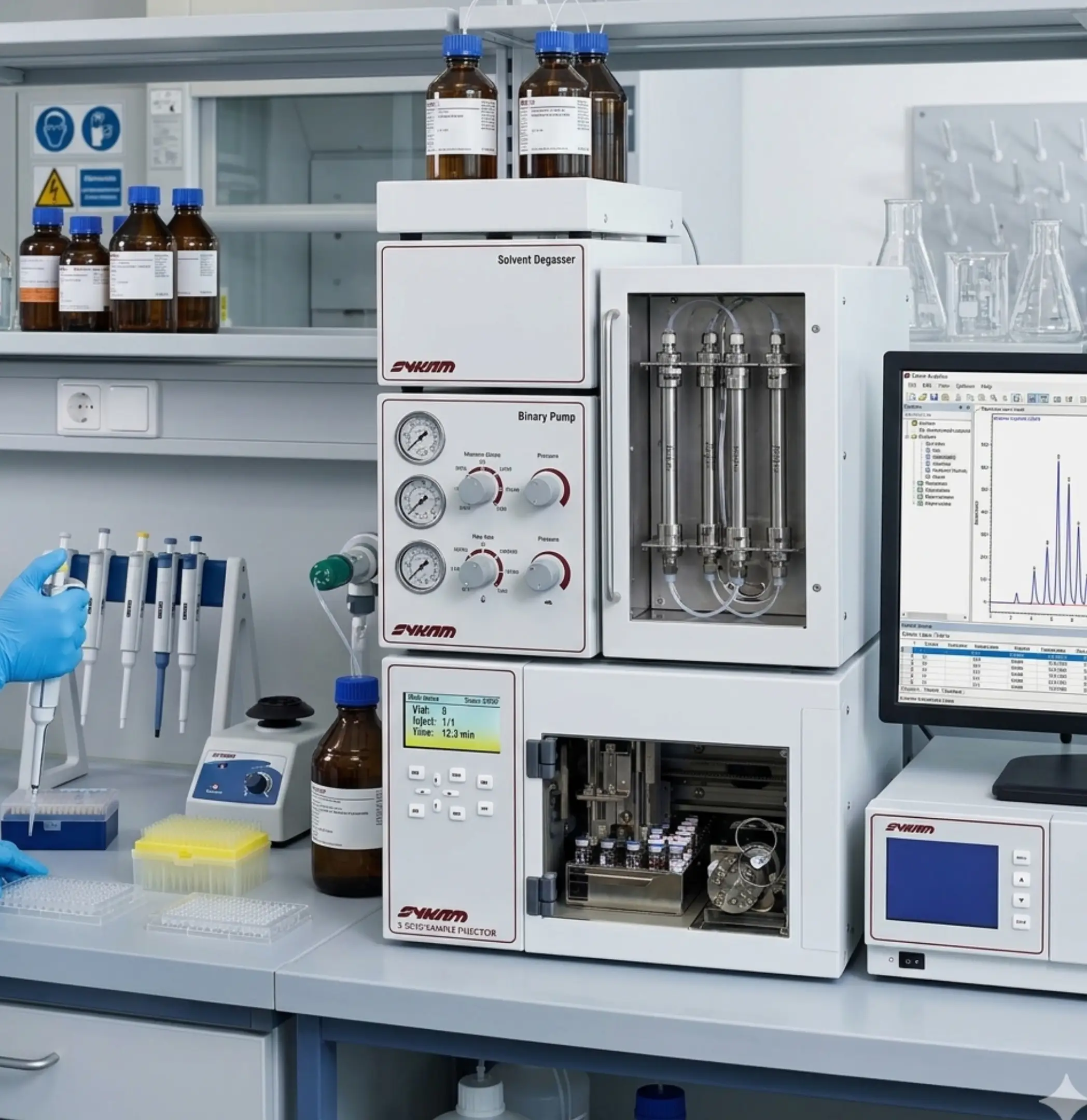

Automated Sample Loading for Reproducible HPLC
Sample introduction sets the tone for every chromatogram: get it right, and your calibration, quantitation, and audit trail stay trustworthy from the first vial to the last. Sykam’s fully automated sample loaders run unattended sequences of up to 120 positions with minimal carryover, programmable wash cycles per injection, and support for duplicate injections and variable injection volumes — so you can standardize complex methods without standing at the instrument.
Mid-throughput autosampler

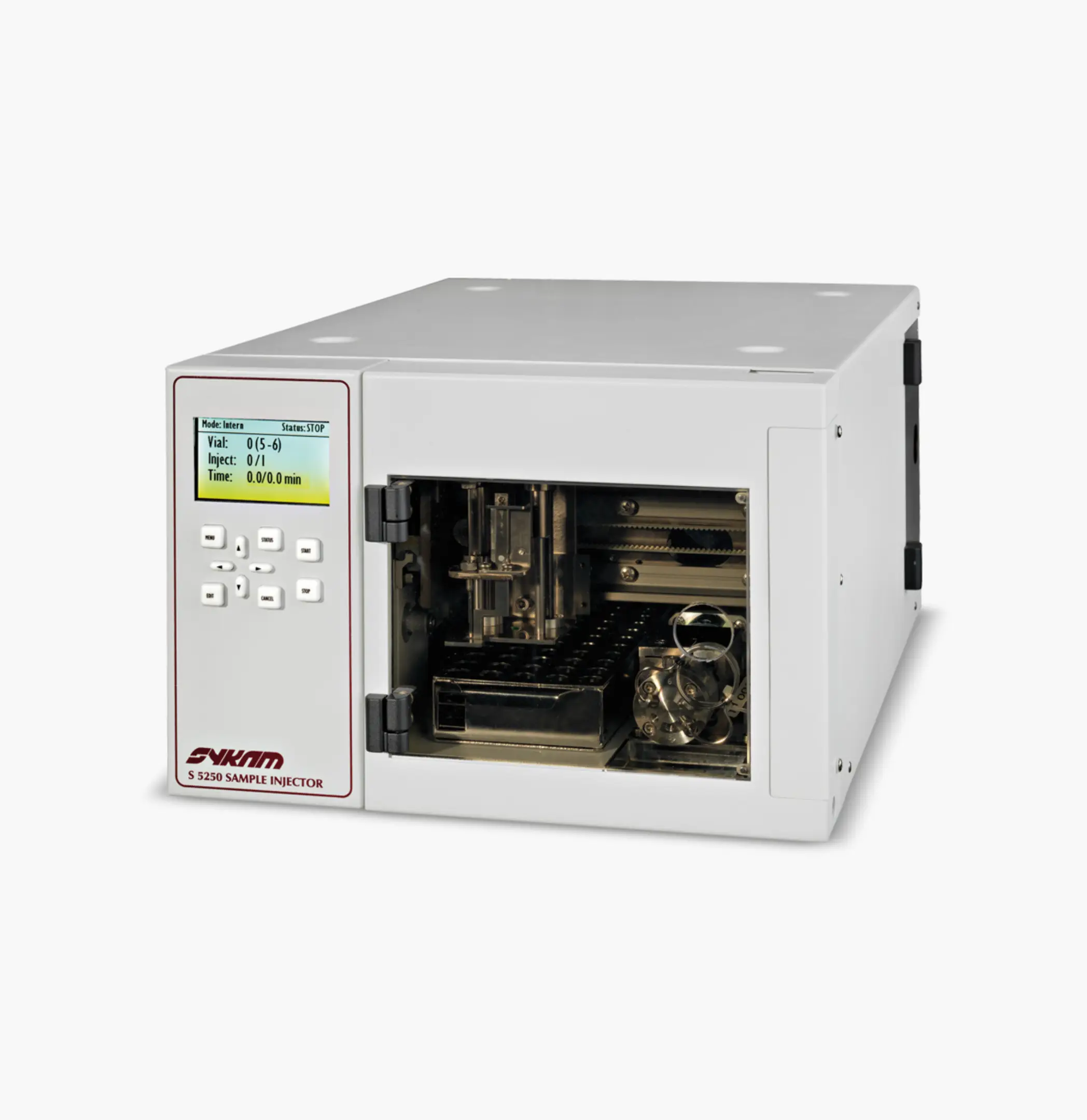

S 5250 — HPLC Sample Loader
Flexible racks, microplates, and firmware options for demanding analytical workflows
The S 5250 is built for labs that need a dependable, adaptable front end to HPLC: interchangeable sample racks and microtiter adapters pair with extensive firmware options so you can match the autosampler to your column chemistry, sample format, and regulatory expectations. Injection linearity and day-to-day repeatability are engineered in — and when your method calls for derivatization or variable aliquots, the platform is ready without compromise.
Specifications
- Materials
- Stainless steel, PEEK, PPS, or PVDF
- Sample capacity
- 60 or 90 × 1.5 ml vials; up to 192 positions with microtiter plates
- Injection volume
- Programmable 0.1 – 999.9 µl
Applications
From pharmaceutical release testing to research methods that evolve weekly, the S 5250 fits wherever robust, traceable liquid handling is non-negotiable — including workflows with offline or online derivatization and multi-format sample submission.
High-throughput autosampler
S 5300 — HPLC Sample Loader
Extended vial capacity with the same precision and software depth
When queue length grows but data quality cannot slip, the S 5300 steps up: the same reproducibility, linearity, and derivatization flexibility as the S 5250, with a larger 1.5 ml vial tray for high-sample-count campaigns. Configure racks and plate adapters to mirror your LIMS submission pattern, then let firmware-managed wash profiles keep cross-contamination under control across long overnight batches.
Specifications
- Materials
- Stainless steel, PEEK, PPS, or PVDF
- Sample capacity
- 120 × 1.5 ml vials; up to 192 positions with microtiter plates
- Injection volume
- Programmable 0.1 – 999.9 µl
Applications
Ideal for high-throughput QC, stability studies, and screening labs that need one autosampler platform to span routine quantitation, method tweaks, and plate-based sample sets — without sacrificing injection fidelity.
Need help choosing rack layouts, wash strategies, or integration with your stack? Contact us — we will align sample loading with your throughput targets and compliance framework.
